Genel Bakış
EFFICIENT QUAD-CORE EMBEDDED COMPUTING

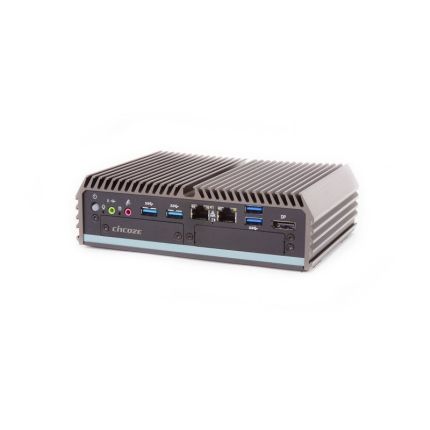

The DC-1200 is a rugged compact embedded computer that utilizes the Apollo Lake N4200 Quad-Core processor and up to 8 GB of DDR3L memory. Tackling everything from simple embedded tasks to HD-intensive, multi-display applications, the DC-1200 overcomes the limitations of other similarly-sized industrial systems. The DC-1200 is also available with optional 4G LTE connectivity, enabling remote network access or failover protection.
LONG-TIME RELIABILITY
The DC-1200 is built to last, wrapped in a compact, fanless, ventless enclosure that protects against dust, dirt, and vibration. Eliminating the fan as a failure point extends the life of the system, and a wide power input of 9~48VDC ensures long-time reliability. Paired with wide-temp memory and SSD, the DC-1200 is capable of operating in -40°C to 70°C.
EXPANDABLE I/O
Even though the DC-1200 is compact, it still packs a versatile array of I/O. Dual COM, Gb LAN, and 4 USB 3.0 ports offer a versatile platform, while Cincoze’s CMI and CFM modules can be utilized to add HDMI, DIO, PoE, ignition sensing, and additional COM and LAN. High-speed, reliable storage can be added via the systems 2.5” HDD/SSD drive bay while wireless connectivity can be added via the mPCIe slot.
CELLULAR CONNECTIVITY
This system is compatible with our Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today's mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
Özellikler
| SKU | DC-1200 |
|---|---|
| Hardware Line | Rugged Line |
| System Cooling | Fanless |
| Processor | Intel Pentium N4200 |
| Processor Speed | 1.1 GHz |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Apollo Lake |
| Processor Cores | 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics 505 |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 8 GB |
| Memory Speed | 1866 MHz |
| Memory Slot Count | 1.00 |
| Number of Displays Supported | 3 (When configured with a CMI module) |
| Rear I/O | 1 3-pin Terminal Block 9~48 VDC input 1 DVI-D Port 2 Antenna holes 2 RS-232/422/485 COM ports Remote Power Button Connector |
| Front I/O | 4 USB 3.0 port 1 DisplayPort 2 Gb LAN ports 2 Audio jacks; line-out, mic-in 1 SIM card slot Power button Power mode switch |
| Expansion Options | 2 Cincoze CFM slots 2 Cincoze Modular I/O slots 2 PCIe Mini Card slots (full height) 1 SIM Card socket |
| Storage Options | 1 mSATA (shared with mPCIe) 2.5" HDD/SSD |
| LAN Controller | Intel I210IT GbE |
| System Monitoring | Watchdog Timer |
| Input Voltage | 9~48 VDC |
| Power Input | 3-pin Terminal Block connector |
| Power Features | Wide Input |
| Operating Temperature Range | -40 ~ 70°C |
| Operating Humidity | 10% ~ 95% |
| Shock Tolerance (Operating) | Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 |
| Vibration Tolerance (Operating) | Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 |
| Dimensions (WxHxD) | 185 x 56.5 x 131 mm 7.28" x 2.22 x 5.16" |
| Case Type | Compact Fanless |
| Case Material | Aluminum Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | DIN-mount (included) VESA-mount (included) Wall-mount (kit included) |
| Compatible Cloud Services | Microsoft Azure Certified for IoT |
| Regulatory Information | 2011/65/EU (RoHS 2 Directive) CE E-Mark EN 55022 EN 55024 FCC 47 CFR Part 15 |
| Warranty | 2 year limited warranty on parts and services |
| Manufacturer's Product Page | For more information, please see this product's webpage. |
| Notes |
|
