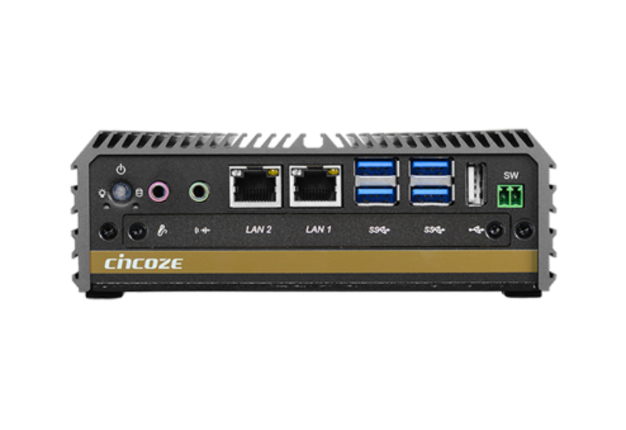

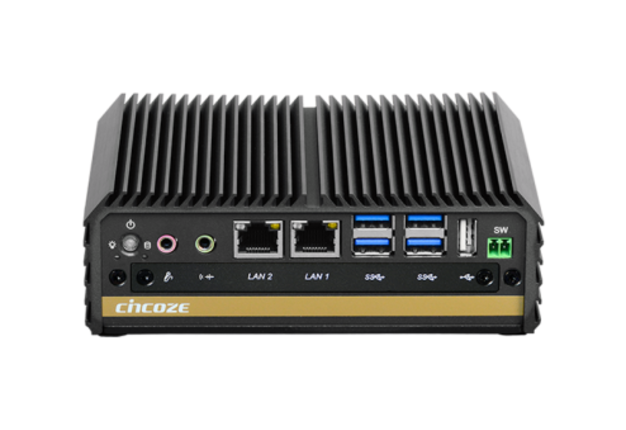

DA-1000

Model Name

DA-1000

Processor System

CPU

Intel® Atom™ E3826

Frequency

1.46 GHz

Core Number

2

BIOS

AMI 64Mbit SPI

Chipset

-

Memory

Technology

DDR3L 1066MHz (un-buffered and non-ECC)

Max. Capacity

8 GB

Socket

1x 204-Pin SO-DIMM

Display

Dual Display Supported

1x DVI-I

(1x DVI-D and 1x VGA with optional split cable)

Expansion

PCI

-

PCIe

-

Mini PCIe

2x Full-size Mini-PCIe

Ethernet

Controller

2x Intel® GbE1: Intel I210-AT GbE LAN Port.

Support Wake-on-LAN, Jumbo Frame and PXE

PoE

-

Speed

10/100/1000 Mbps

Audio

Codec

Realtek ALC888S

Connector

1x Mic-in and 1x Line-out

WatchDog Timer

Software Programmable Supports 1~255 sec. System Reset

Storage

SSD / HDD

1x 2.5" SATA Bay

mSATA

1x Internal mSATA / Internal SIM Socket (shared by one Mini-PCIe socket)

SIM Socket

I/O Ports

USB 3.0

1

USB 2.0

3

COM Port

2 (DB9, RS-232/RS-422/RS-485 with Auto Flow Control)

Antenna Hole

2

Power Switch

1

AT/ATX Switch

1

External Fan Connector

-

Remote Power On/Off and

Remote Power Reset

Yes

Universal I/O Bracket

1

Power Requirement

Power Type

AT / ATX

Power Supply Voltage

9~48VDC

Connector

1x 3-pin Terminal Block

1x 2-pin Terminal Block Connector (For Remote Power On/Off)

Power Adaptor

Optional AC/DC 12V/5A, 60W

Power Consumption

Typical 8.3W, Max.15W

Environment

Operating Temperature

Ambient with Air Flow: -25°C to 70°C (with Industrial Grade Peripherals)

Storage Temperature

-40°C to 85°C

Relative Humidity

95% RH @ 40˚C (Non-condensing)

Shock

50 Grms (with SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)

Vibration

Random: 5 Grms (with SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)

Physical

Dimension (WxDxH)

150 x 105 x 56.02 mm

Weight

0.86kg

Construction

Aluminum Chassis with Fan-less Design

Mounting

VESA/Wall Mounting (Optional DIN-Rail/Side Mounting)

Operating System

Windows

• Windows® 10

• Windows® 8.1

• Windows® 7

Certification

EMC

• CE

• FCC Class A
